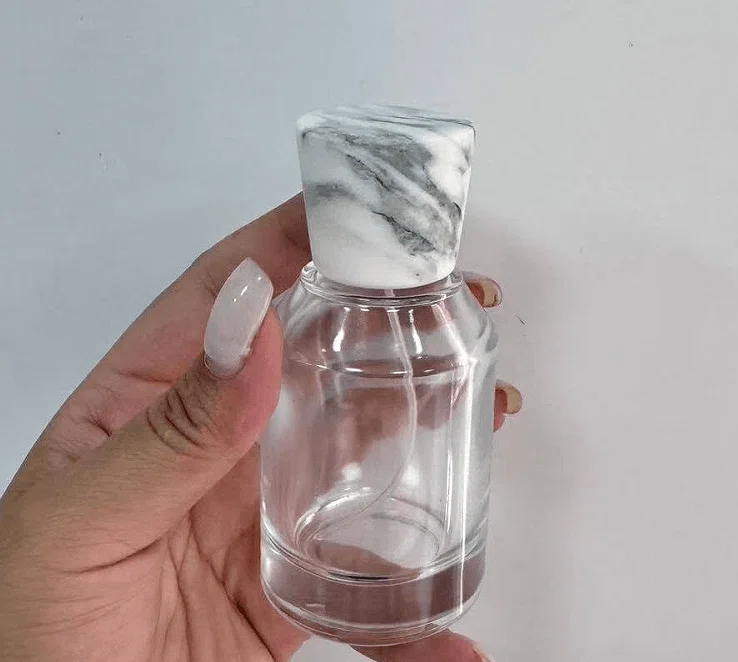

As a professional perfume packaging OEM/ODM manufacturer, natural stones and minerals (such as marble, rose quartz, and jade) lend an ultra-luxurious texture and satisfying weight to perfume bottles. However, due to high hardness, extreme brittleness, and uneven natural veining, machining custom irregular shaped stone perfume caps presents extremely high technical hurdles and high defect rates, making development costs exceptionally high compared to easily controlled materials.
1. Four Core Engineering Challenges in Custom Stone Perfume Caps
- Material Fragility & Internal Stress Cracking: Natural stone contains micro-fractures. High-speed drilling or grinding can easily trigger catastrophic cracking.
- Dimensional Tolerance Control: Stone cannot be injection molded like plastic. Temperature fluctuations during CNC carving cause slight dimensional deviations.
- PP Insert Alignment & Fit: Stone caps cannot snap directly onto perfume spray pumps. A plastic inner liner (PP insert) must be embedded with ultra-high concentricity alignment.
- Polishing Dead Angles on Complex Geometries: Uneven curved surfaces easily suffer from chipped edges, collapsed margins, or uneven surface gloss during mechanical polishing.
2. Six Complex Stone Cap Geometries: Irregular Shaped Stone Perfume Cap Challenges & Factory Breakthroughs

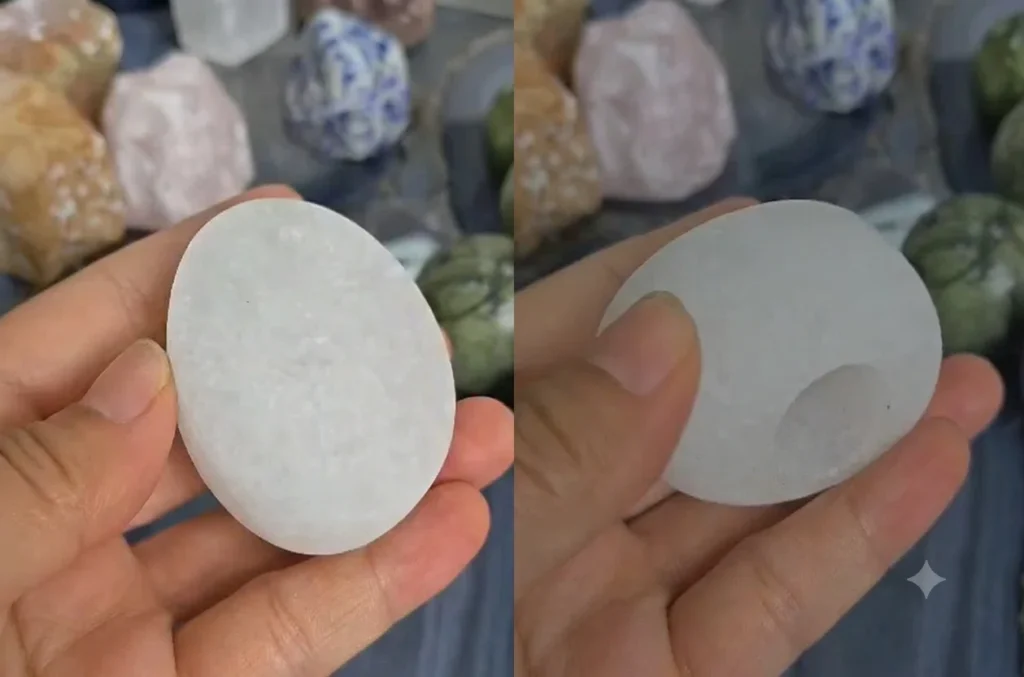

Case 1: Oval Jade or Marble Lid
- Manufacturing Difficulty: Asymmetric oval geometry causes uneven force distribution during internal hole drilling, often blowing out thin-walled sides.
- Factory Breakthrough: We use a 5-axis CNC water-cooled drilling machine paired with a custom oval positioning jig. Water-cooling dissipates heat instantly during precision drilling, ensuring zero breakage and exact alignment.

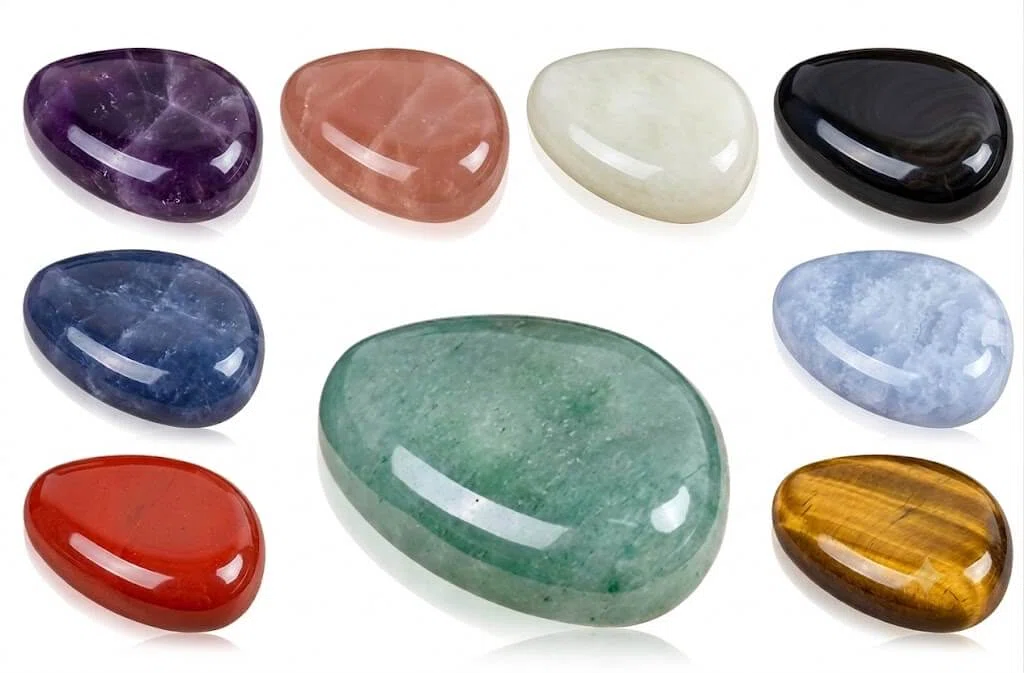

Case 2: Asymmetrical Edge Jade or Marble Cap
- Manufacturing Difficulty: Center-of-gravity shift. Uneven cap edges cause the cap to tilt when placed on the bottle, making inner liner lock-grooves difficult to align.
- Factory Breakthrough: We run 3D center-of-gravity balance simulations before production. Off-center internal cavity milling counterweights the design, guaranteeing the cap sits flat and straight.

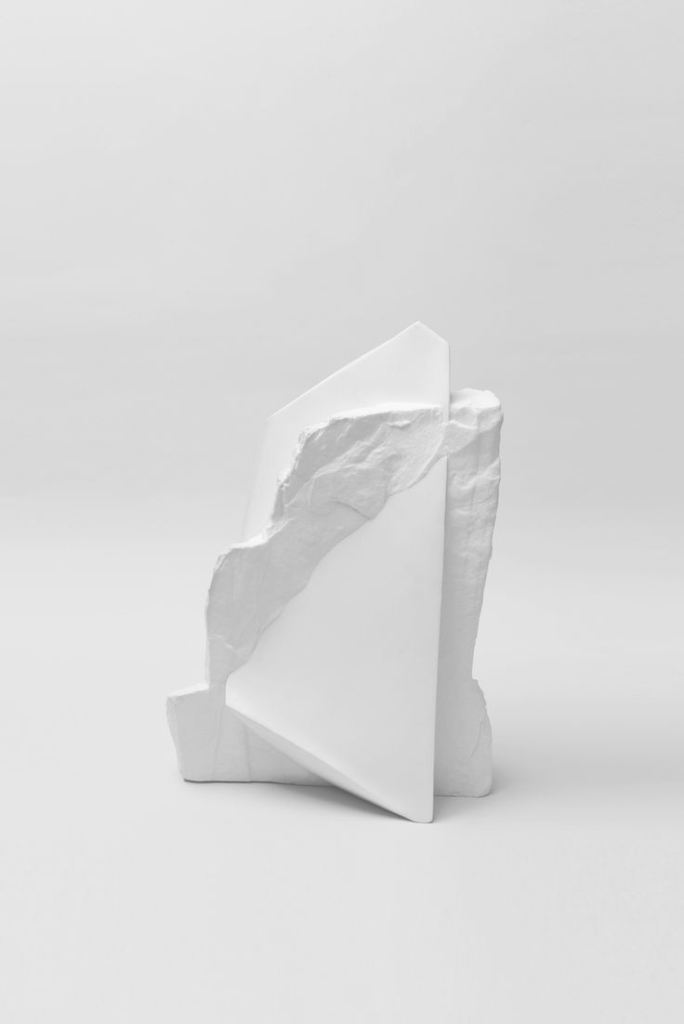

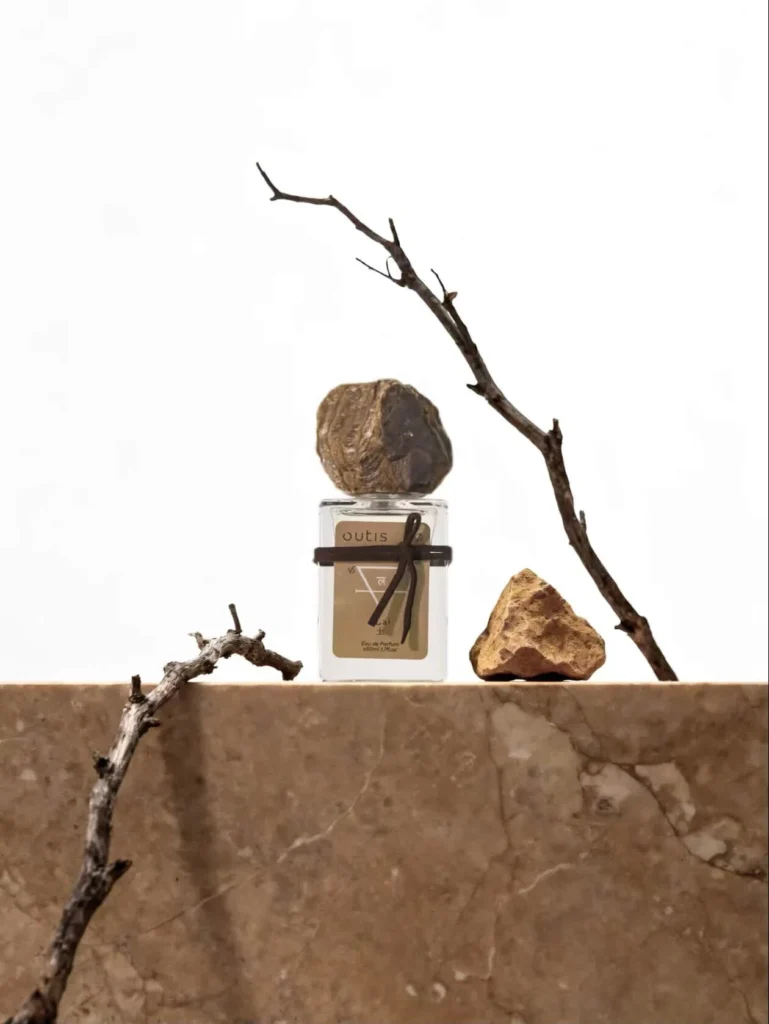

Case 3: Custom Irregular Shaped Natural Stone Lids
- Manufacturing Difficulty: Lack of standard clamping surfaces. Freeform raw stone shapes make machine mounting unstable, leading to dimensional variances across batch runs.
- Factory Breakthrough: We perform 3D laser scanning to build a Master CAD database. Soft silicone vacuum-holding fixtures secure the stone during multi-angle CNC carving, followed by necessary hand-finishing within strict tolerance limits.
Case 4: Conical Marble Perfume Top Cover Lids
- Manufacturing Difficulty: Fragile conical tips and difficult deep blind-hole milling. As the top tapers, thin walls can collapse during internal drilling.
- Factory Breakthrough: We use stepped carbide milling bits to hollow out the cavity incrementally. We then inject invisible structural resin into the inner walls to reinforce strength while preserving the sleek tapered profile.

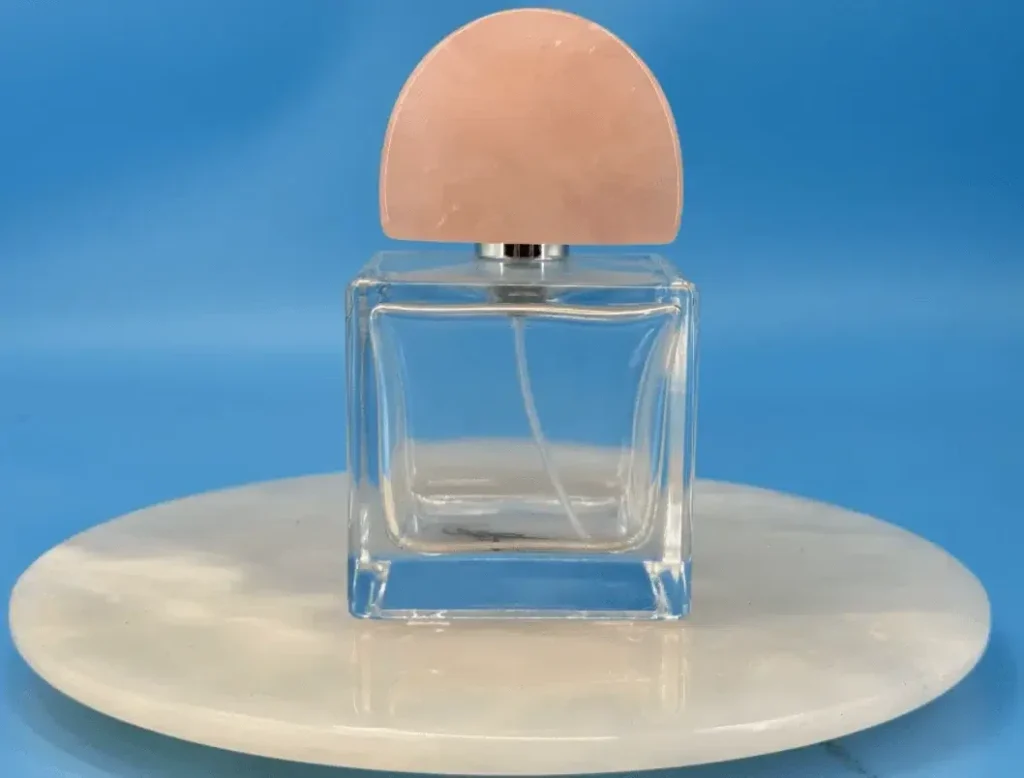

Case 5: Half-Moon Quartz Perfume Lid
- Manufacturing Difficulty: High brittleness of Rose Quartz. The two sharp crescent tips easily chip or burr under high-speed polishing.
- Factory Breakthrough: We replace traditional saws with ultrasonic vibration cutting technology, reducing mechanical impact by 80%. Micro-chamfers applied to sharp tips prevent edge chipping.
Case 6: Mountain Contour Marble Perfume Cap
- Manufacturing Difficulty: Achieving realistic, sharp mountain ridges with high precision according to client specs.

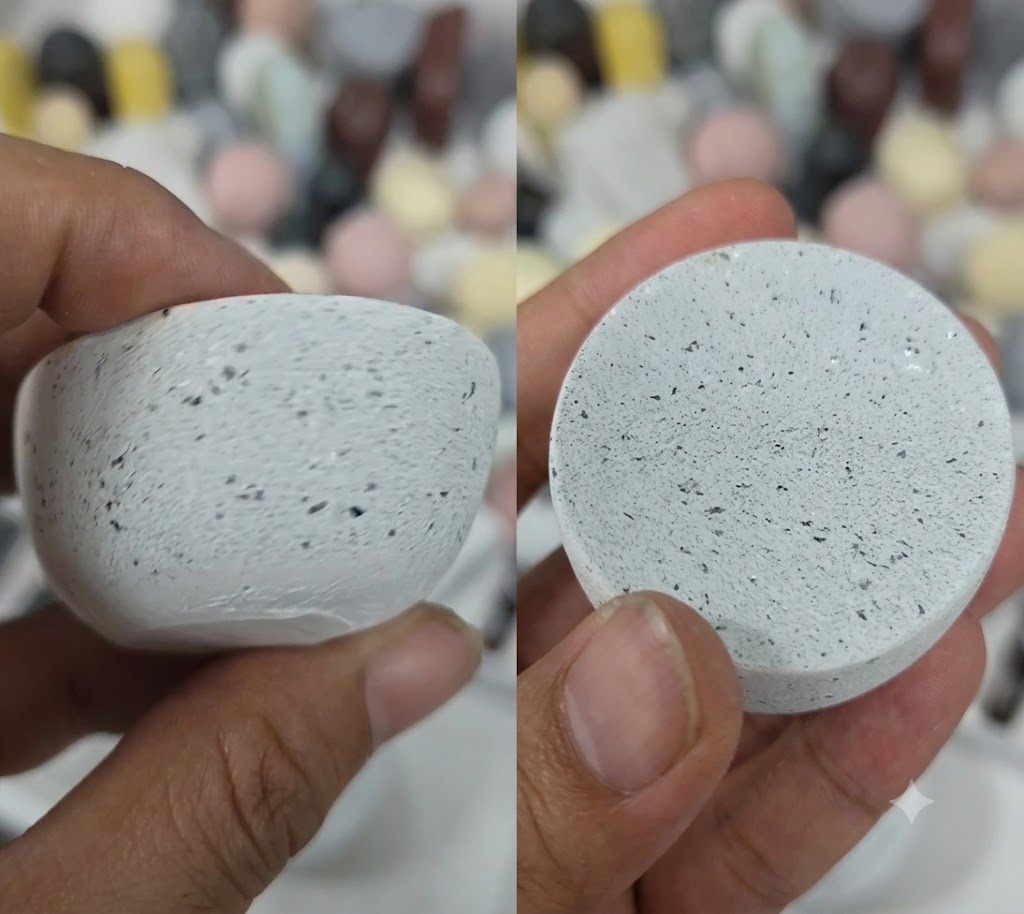

- Factory Breakthrough: We utilize engineered stone or Artificial stone. We build a 3D digital model and produce a physical prototype first to confirm precision. Once approved, we open production molds for mass manufacturing.
3. Summary Table: Irregular Shaped Stone Perfume Lids Engineering Challenges & Factory Solutions
| Cap Geometry Style | Core Manufacturing Difficulty | Factory Solution & Quality Control |
| Oval Drilled Cap | Asymmetric stress causing wall fracture during hole drilling. | 5-Axis CNC water-cooled drilling + custom oval clamping jigs. |
| Asymmetrical Edge Cap | Weight shift causing cap tilt on perfume bottles. | 3D gravity balance simulation + off-center internal cavity milling. |
| Irregular Raw Stone Cap | Lack of standard reference planes for mass clamping. | 3D laser scan modeling + custom soft silicone holding fixtures. |
| Conical / Tapered Cap | Tip breakage & internal blind-hole wall collapse. | Stepped carbide milling + internal resin reinforcement. |
| Half-Moon Quartz Cap | Extreme brittleness; crescent tips chip during edge polishing. | Ultrasonic cutting technology + micro-chamfer edge protection. |
| Mountain Contour Cap | Achieving realistic, sharp mountain ridges with high precision | Ues Artificial stone,produce a physical prototype first to confirm precision then open production molds for mass manufacturing. |

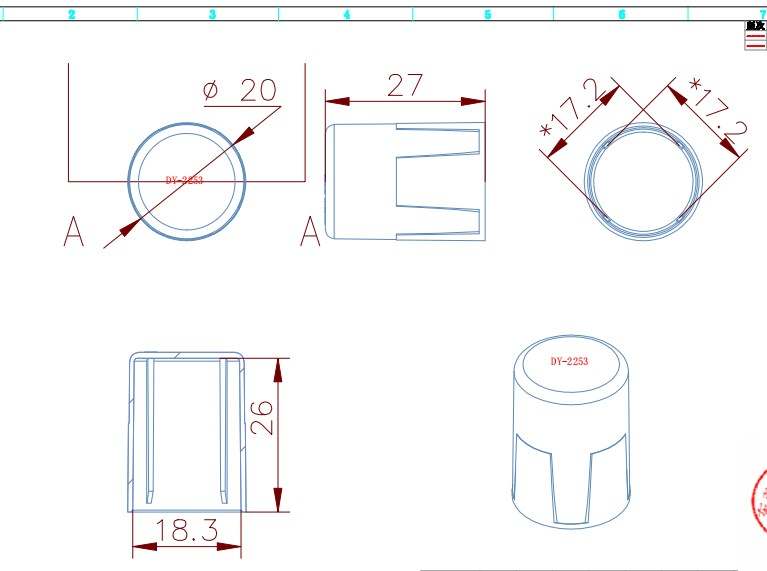

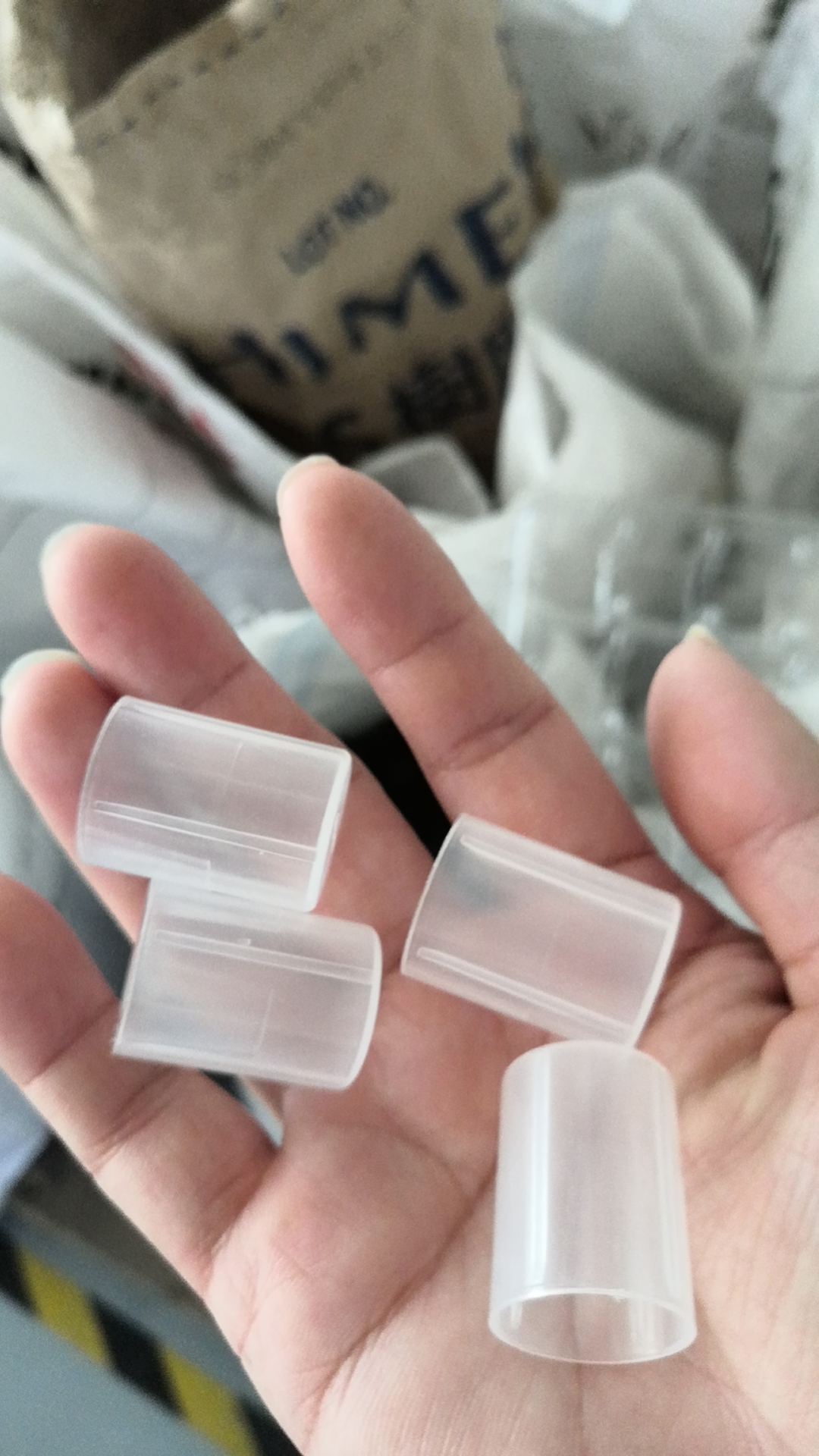

Note on Plastic Inserts: For orders reaching 10,000 pieces, we can fully customize custom-molded PP inner inserts tailored specifically to your design ideal bottle neck structure.
4. Frequently Asked Questions from Irregular Shaped Stone Perfume Cap Factory
Our standard factory MOQ is 1,000 pieces. For luxury niche fragrance brands, initial trial orders can be supported at 300–500 pieces.
https://fragrancepackage.com/custom-natural-stone-perfume-caps-guide-solutions/
No. We use high-strength, heat-resistant two-component epoxy glue combined with internal mechanical lock-grooves milled into the stone cavity, achieving retention pull forces of 15N–20N.
Yes. Every natural stone slab features unique patterns. We perform strict manual stone slab sorting to keep batch color variations within agreed tolerances.
While stone is solid, hard impacts on floor tiles can chip sharp edges. We engineer cushioning structures into our internal PP liners to absorb drop impact forces.
We offer over 100 natural and engineered stone options, including Carrara White Marble, Black Marquina, Green Aventurine Jade, Rose Quartz, Tiger Eye, Travertine, and Turquoise. Please contact our sales representatives for physical color swatches.
No. Every finished stone cap receives a food-grade nano-hydrophobic and oleophobic sealing coat to prevent oil penetration, discoloration, or etching.
Yes! We specialize in multi-material integration—such as adding electroplated gold or silver Zamac weighted base rings to irregular stone caps to elevate luxury appeal.
3D CAD designs and renderings take 2–3 days. Physical CNC sampling and hand-polishing take 10–14 working days.
We perform 100% pull-force retention testing using automatic digital pull gauges matched to your exact spray pump neck (e.g., FEA15) to ensure smooth clicking and ideal retention force.
Natural stone offers unique individual patterns, a cool tactile touch, and substantial weight—significantly boosting brand perception and supporting premium pricing.
